Nickel 200 Pipe Fittings

High-Strength Alloy 200 Elbow & Reducer Manufacturer in India with MTC

As a well-known stockist, we supply Nickel 200 Pipe Fittings. Our godown has held ready stock since 1980. Pure Nickel 200 Buttweld Fittings are cleaned before packing. Choose a UNS N02200 Elbow in long or short radius. Branch lines use an Alloy 200 Tee of matching wall. Any Ni 200 Reducer is cut to your drawing. Our ASTM B366 UNS N02200 Cap closes pipe ends securely. Lap joints need a Werkstoff Nr. 2.4066 Stub End. Large bore needs Nickel 200 Welded Pipe Fittings. An EN 10204 3.1 MTC accompanies every lot. Third party inspection is arranged before every shipment leaves. Our stock covers buttweld, socket weld and threaded types. Italian and Japanese origin lots are ready to dispatch. Each fitting is heat marked for easy traceability. We export to buyers in many countries every month. Our export cases travel by sea or air from Mumbai. Send your sizes today for a quick quotation.

Read our certificates, quality control and third-party inspection pages. Last updated: 19 October 2026.

Specification Of Nickel 200 Pipe Fittings

Specifications here reflect our Nickel 200 Pipe Fittings Supplier in India stock.

Alloy 200 Buttweld Pipe Caps Packing

• Crate label repeats the heat number
• Bevels capped with plastic protectors
• Fumigation certificate for the wood
• Cartons inside ISPM 15 timber crates

Nickel 200 Pipe Fittings Density

• Heavier than stainless 316 fittings
• 8.89 g/cm³
• Basis for per-piece weight estimates
• 0.321 lb/in³

Ni 200 Reducer Bevel Ends

• Plain ends available on request
• ASME B16.25 buttwelding ends
• Single V up to 22 mm wall
• 37.5 degree bevel, root face 1.6 mm

NW 2200 Nipple Codes by Market

• Customs: HS 7507.20 worldwide
• Japan: JIS NW2200
• Germany: DIN 17740 chemistry basis
• UK: BS 3072 to 3076, grade NA 11

UNS N02200 Elbow Service Ceiling

• State design temperature on the PO
• Hotter lines: order WPNL (Nickel 201)
• Up to 315 °C (600 °F)
• Graphite forms on long hot exposure

Nickel Alloy 200 Coupling Weld Consumables

• Degrease joints, keep sulfur away
• SMAW: ENi-1 (Electrode 141)
• GTAW / GMAW: ERNi-1 (Nickel 61)
• Same wire joins Ni 200 to steel

Alloy 200 Pipe Fittings Melting and Anneal Range

• Melts at 1435 to 1446 °C (2615 to 2635 °F)
• Narrow solidus to liquidus gap
• Anneal at 705 to 925 °C (1300 to 1700 °F)
• Batch furnace anneal 705 to 815 °C

Werkstoff Nr. 2.4066 Stub End Testing

• PMI and hardness on request
• RT or UT on welded classes
• Tension test per lot
• Hydrotest not required by B366

Alloy 200 Tee Magnetic Behaviour

• Curie point 360 °C (680 °F)
• Ferromagnetic at room temperature
• Magnetic pick-up during PMI is normal
• Not a sign of iron contamination

Nickel 99.2 Collar Processing

• Pickled after any shop work
• Wall matched to the mating pipe
• NPT or BSP threading on forged items
• Re-bevel to your WPS angle

ASTM B366 UNS N02200 Cap Tolerances

• Checked piece by piece before crating
• Centre to end ±2 mm up to NPS 24
• Wall never below 87.5% of nominal
• OD at bevel per ASME B16.9 bands

Ni-200 Cross Marking

• Low-stress stamps on thin walls
• Heat number stamped or stencilled
• Grade WPN and class letter
• Maker, size and schedule

Buy ASTM B366 UNS N02200 Buttweld Fittings Sizes From 1/8" to 48" NB for Marine Industry at Lowest Price

Nickel 200 Pipe Fittings Distinct Types

Browse every shape and size held ready by a Nickel 200 Pipe Fittings Supplier in Mumbai.

Seam welded

Nickel 200 Welded Pipe Fittings

• SizesLarge bore range
• BuildSeam welded, class WP-W

Coupling

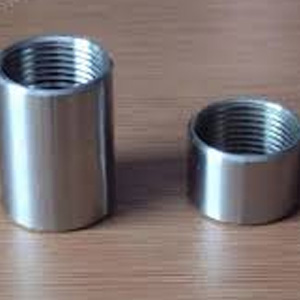

Nickel Alloy 200 Coupling

• Class3000 or 6000, ASME B16.11
• PatternFull, half or reducing

Reducing tee

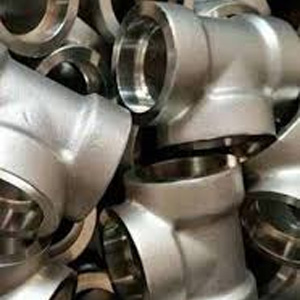

Alloy 200 Tee

• Order asRun x run x branch
• OutletOne or more sizes smaller

Lap joint

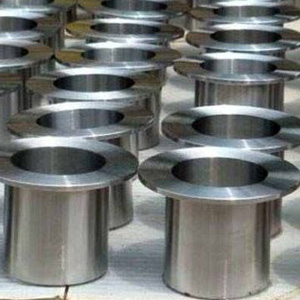

Werkstoff Nr. 2.4066 Stub End

• Pair withCarbon steel loose flange
• TypeLap joint, long or short pattern

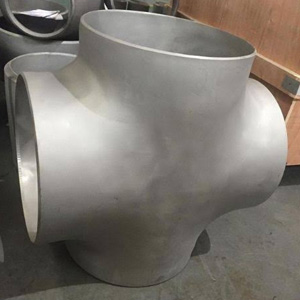

Buttweld cross

Nickel Alloy 200 Buttweld Cross

• StandardASME B16.9
• EndsFour buttweld bevels

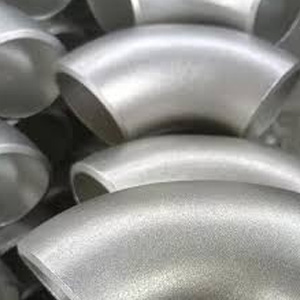

Elbow

UNS N02200 Elbow

• RadiusLR 1.5D or SR 1D
• Angle45 or 90 degree

Threaded

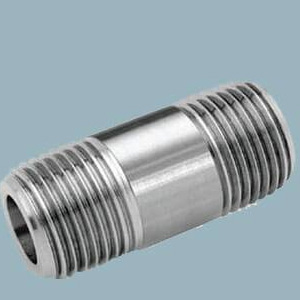

NW 2200 Nipple

• ThreadNPT or BSP
• EndsTBE, TOE or plain

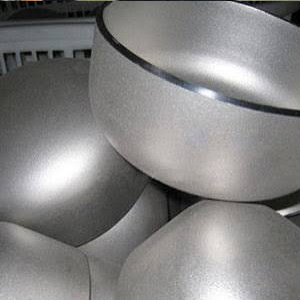

End cap

ASTM B366 UNS N02200 Cap

• UseLine end closure
• ShapeEllipsoidal buttweld closure

Equal tee

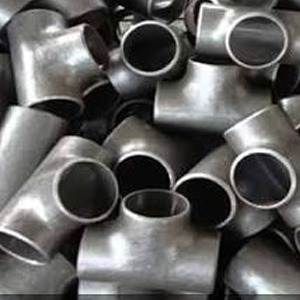

Alloy 200 Equal Tee

• BuildSeamless WP-S or welded WP-W
• OutletSame bore as the run

Reducer

Nickel Alloy 200 Reducer

• LengthH per ASME B16.9
• PatternConcentric or eccentric

Forged tee

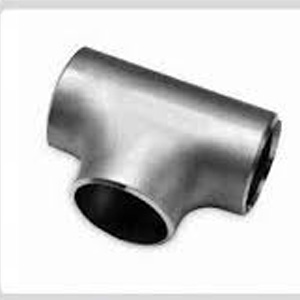

NW 2200 Straight Tee

• Class3000 or 6000, ASME B16.11
• EndsForged socket weld or threaded

Forged cross

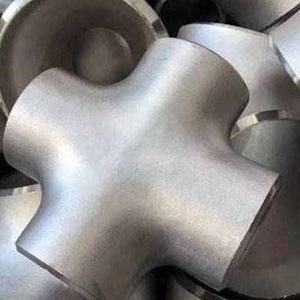

Ni-200 Cross

• EndsForged socket weld or NPT
• OutletsFour way, equal or reducing

Pure Nickel 200 Buttweld Fittings Chemical Composition

Compare element percentages at Nickel 200 Pipe Fittings Supplier in Hyderabad

Ni99.0 minNickel (incl. Co)

C0.15 maxCarbon

Cu0.25 maxCopper

Fe0.40 maxIron

Mn0.35 maxManganese

Si0.35 maxSilicon

S0.01 maxSulfur

%By weightHeat analysis on MTC

✓ Starting stock B161 pipe, B162 plate, B160 / B564 bar and forgings✓ B366 rule Chemistry taken from the starting material spec✓ Dual cert Heats under 0.02% C also meet N02201

UNS N02200 Elbow Mechanical Properties

Check load limits published by Nickel 200 Pipe Fittings Supplier in Bengaluru

From B161 pipe, OD 127 mm (5 in) and under, annealed

Tensile, min380 MPa (55 ksi)

Yield 0.2%, min105 MPa (15 ksi)

Elongation 35% minMost buttweld sizes

From B161 pipe, OD over 127 mm (5 in), annealed

Tensile, min380 MPa (55 ksi)

Yield 0.2%, min80 MPa (12 ksi)

Elongation 40% minNPS 6 and larger

From B160 bar, annealed (forged fittings)

Tensile, min380 MPa (55 ksi)

Yield 0.2%, min105 MPa (15 ksi)

Elongation 40% minSocket weld and threaded

Alloy 200 Tee Material Equivalent

International designations match at our Nickel 200 Pipe Fittings Supplier in Pune.

UNSN02200Unified number

W.Nr.2.4066 / 2.4060German material number

DIN 17740Ni 99.2Chemistry basis

BS 3072-3076NA 11British grade

JISNW2200Japanese grade

ASTM B366 Grade and Class Letters Stamped on the Fitting

WPN

Grade mark

WPN for ASME pressure fittings, CRN for MSS SP-43 corrosion-resistant fittings.

S

Class WP-S

Seamless construction, no NDE required.

W

Class WP-W

Welded; welds radiographed or ultrasonically tested.

WX / WU

Class WP-WX, WP-WU

Welded with radiography (WX) or ultrasonic (WU) examination.

ASTM B366 UNS N02200 Buttweld Fittings Sizes and Dimension Chart

Dimensions every Nickel 200 Pipe Fittings Stockist in India should quote.

1/2 to 48Buttweld, inch NB

1/8 to 4Forged SW and NPT, inch NB

1.5 x NPSLR elbow centre to end

1.0 x NPSSR elbow centre to end

ASME B16.9 Centre to End and Length Chart, mm

NPS (in)	OD (mm)	Centre to end or overall length (mm)
		90 deg LR elbow A	90 deg SR elbow A	45 deg LR elbow B	Equal tee C and M	Cap E	Reducer H
1/2	21.3	38	–	16	25	25	–
3/4	26.7	38	–	19	29	25	38
1	33.4	38	25	22	38	38	51
1 1/4	42.2	48	32	25	48	38	51
1 1/2	48.3	57	38	29	57	38	64
2	60.3	76	51	35	64	38	76
2 1/2	73.0	95	64	44	76	38	89
3	88.9	114	76	51	86	51	89
3 1/2	101.6	133	89	57	95	64	102
4	114.3	152	102	64	105	64	102
5	141.3	190	127	79	124	76	127
6	168.3	229	152	95	143	89	140
8	219.1	305	203	127	178	102	152
10	273.0	381	254	159	216	127	178
12	323.8	457	305	190	254	152	203
14	355.6	533	356	222	279	165	330
16	406.4	610	406	254	305	178	356
18	457.2	686	457	286	343	203	381
20	508.0	762	508	318	381	229	508
22	558.8	838	559	343	419	254	508
24	610.0	914	610	381	432	267	508
26	660.4	991	–	406	495	267	610
28	711.2	1067	–	438	521	267	610
30	762.0	1143	–	470	559	267	610
32	812.8	1219	–	502	597	267	610
34	863.6	1295	–	533	635	267	610
36	914.4	1372	–	565	673	267	610
38	965.2	1448	–	600	711	305	610
40	1016.0	1524	–	632	749	305	610
42	1066.8	1600	–	660	762 / 711	305	on request
44	1117.6	1676	–	695	813 / 762	343	on request
46	1168.4	1753	–	727	851 / 800	343	on request
48	1219.2	1829	–	759	889 / 838	343	on request

☰︎

Wall options

SCH 5S, 10S, 40S, 80S and 160. State the pipe schedule and the fitting wall follows it.

▦︎

Thin wall sizes

SCH 5S and 10S fittings to MSS SP-43 share B16.9 lengths; OD at the bevel differs slightly.

↔︎

Small bore

1/8, 1/4 and 3/8 in come as forged socket weld or threaded items, not buttweld.

✎︎

Takeoff tip

Subtract the A, C or H figure from your centreline dimension to get the pipe cut length.

ASME B16.9 Dimensional Tolerances, mm

NPS (in)	OD at bevel	ID at end	Centre to end A, B, C, M	Overall length E, H
1/2 to 2 1/2	+1.6 / −0.8	±0.8	±2	±2
3 to 4	±1.6	±1.6	±2	±2
5 to 8	+2.4 / −1.6	±1.6	±2	±2
10 to 18	+4.0 / −3.2	±3.2	±2	±2
20 to 24	+6.4 / −4.8	±4.8	±2	±2
26 to 30	+6.4 / −4.8	+6.4 / −4.8	±3	±5
32 to 48	+6.4 / −4.8	+6.4 / −4.8	±5	±5

Ni 200 Reducer Welding Guide

Fabricators follow joint advice from our Nickel 200 Pipe Fittings team.

Filler Metal

• ERNi-1 wire for GTAW and GMAW
• ENi-1 electrodes for SMAW
• Titanium in the filler controls porosity

Joint Cleanliness

• Remove oil, grease, paint and crayon marks
• Sulfur and lead cause hot cracking
• Clean 25 mm each side of the bevel

Shielding and Backing Gas

• Pure argon for torch and root purge
• Avoid nitrogen mixes, they cause porosity
• Keep the purge until the root is cool

Heat Input

• No preheat needed
• Stringer beads, low interpass temperature
• Use stainless brushes kept only for nickel

Corrosion Resistance for ASTM B366 UNS N02200 Cap

Chemical plants rely on ASTM B366 UNS N02200 Buttweld Fittings for alkali duty.

✓︎

Caustic Soda

Strong resistance to sodium and potassium hydroxide, from dilute to concentrated and hot.

≈︎

Salts and Seawater

Handles neutral and alkaline salt solutions; avoid stagnant seawater, where pitting can start.

◆︎

Dry Halogens

Suits dry chlorine, hydrogen chloride and fluorine lines at moderately raised temperature.

◈︎

Food and Organic Media

Keeps product colour and taste intact, with good resistance to many organic acids.

▲︎

Sulfur Warning

Sulfur-bearing gases above 315 °C embrittle the metal, so pick another alloy for that duty.

✖︎

Avoid

Nitric acid, ferric chloride, hypochlorite and wet aerated ammonia attack it; choose differently.

Nickel 200 vs Monel 400, Inconel 600, 316L and C276 Pipe Fittings

Grade choice stays simple with a Nickel 200 Pipe Fittings Supplier.

Nickel 200 vs Monel 400

Pick Monel 400 for HF acid and fast seawater; Nickel 200 wins in hot caustic.

Monel 400

Nickel 200 vs Inconel 600

Pick Inconel 600 where the line runs hot or oxidizing beyond Nickel 200 limits.

Inconel 600

Nickel 200 vs 316L

Pick 316L for mild duty and lower cost; it cracks in hot concentrated caustic.

316L

Nickel 200 vs Hastelloy C276

Pick C276 for mixed oxidizing and chloride media, accepting a much higher price.

C276

Nickel 200 vs Nickel 201

Pick Nickel 201 when the design temperature crosses 315 °C for long periods.

Nickel 201

When Nickel 200 is right

Pick it for caustic, dry halogens and product-purity lines below 315 °C.

Nickel 200

Werkstoff Nr. 2.4066 Stub End Pressure Rating

Design pressure checks come first for Pure Nickel 200 Buttweld Fittings.

☰︎

Buttweld Rating

ASME B16.9 fittings are rated like seamless pipe of the same material and wall.

▦︎

Forged Classes

ASME B16.11 uses classes 2000, 3000 and 6000 threaded, 3000, 6000 and 9000 socket weld.

◷︎

Temperature Limit

Allowable stress falls as temperature rises; Nickel 200 stays within its 315 °C ceiling.

↔︎

Welded Class

WP-W and WP-WX fittings carry a weld joint factor set by the examination applied.

✎︎

Send with enquiryDesign pressure, design temperature and corrosion allowance

✓︎

Wall matchFitting schedule follows the connecting pipe schedule

Indicative Working Pressure of Seamless Nickel 200 Fittings, bar

NPS (in)	OD (mm)	SCH 10S (bar)	SCH 40S (bar)	SCH 80S (bar)
1/2	21.3	130	175	244
3/4	26.7	102	142	200
1	33.4	108	133	184
1 1/4	42.2	84	110	153
1 1/2	48.3	73	99	139
2	60.3	58	83	120
2 1/2	73.0	53	91	126
3	88.9	43	79	112
3 1/2	101.6	38	72	103
4	114.3	33	67	97
5	141.3	23	45	66
6	168.3	19	41	64
8	219.1	16	36	56
10	273.1	14	32	45
12	323.9	13	28	38

NW 2200 Nipple Enquiry Checklist

Quotes arrive faster when an ASTM B366 UNS N02200 Cap enquiry has full details.

Details That Complete Your Quote

Fitting typeElbow, tee, reducer, cap, stub end, cross, coupling

Size and wallNPS and schedule, such as 4 in SCH 40S

Standard and gradeASTM B366 WPN, or WPNL for hot lines

Build classWP-S seamless, WP-W or WP-WX welded

End finishBevel angle, plain end, socket weld or NPT

PapersEN 10204 3.1, 3.2, PMI report if needed

InspectionThird party name and test scope

DeliveryDestination port, incoterm and required date

Alloy 200 Buttweld Fittings vs Alloy 200 Forged Fittings

Forged types ship from this Nickel 200 Pipe Fittings Supplier in Secunderabad.

Buttweld (ASME B16.9)

• Made from B161 pipe or B162 plate
• NPS 1/2 to 48, wall follows the pipe schedule
• Bevelled ends to ASME B16.25
• Class WP-S seamless or WP-W welded
• Full penetration girth weld, no crevice

VS

Forged (ASME B16.11)

• Made from B160 bar or B564 forging stock
• NPS 1/8 to 4, socket weld or threaded
• Socket weld classes 3000, 6000, 9000
• Threaded classes 2000, 3000, 6000
• NPT standard; BSP on request

▲︎

Choose buttweld when

Line size is 2 in and above, the fluid must not sit in a socket gap, or the code asks for radiographed joints.

⚙︎

Choose forged when

Bore is 1 1/2 in or smaller, instrument and drain connections need quick make-up, or pressure class ratings are specified.

✓︎

One PO, both routes

Mixed kits are packed per isometric, each piece tagged with its own heat and class.

Nickel 200 vs Nickel 201 Pipe Fittings

Temperature decides grade, advises this Nickel 200 Pipe Fittings Supplier in Visakhapatnam.

Nickel 200, WPN (N02200)

• Carbon 0.15% max
• Rated for service to 315 °C (600 °F)
• Annealed pipe basis: 380 MPa tensile, 105 MPa yield
• W.Nr. 2.4066, BS NA 11
• Lower cost, larger stock

VS

Nickel 201, WPNL (N02201)

• Carbon 0.02% max
• Preferred above 315 °C
• Annealed pipe basis: 345 MPa tensile, 80 MPa yield
• W.Nr. 2.4068, BS NA 12
• Same B366 spec, same B16.9 sizes

♨︎

Why the 315 °C line

Held for long periods between roughly 425 and 650 °C, the 0.15% carbon in Nickel 200 comes out as graphite and ductility falls.

◈︎

Dual-certified fittings

A heat under 0.02% carbon can be certified WPN and WPNL together; we mark both on the MTC when the melt qualifies.

✓︎

What to write on the PO

Give the design temperature and the pipe grade; the fitting grade is then matched so the weld joint is one chemistry.

Export Documents and HS Code for Ni-200 Cross

Paperwork never stalls a Nickel 200 Pipe Fittings Stockist in Mumbai consignment.

Export File Checklist

HS code7507.20 nickel tube or pipe fittings

India tariff line75072000

Material certEN 10204 3.1, heat by heat

Witness optionEN 10204 3.2 by your inspector

Commercial setInvoice, packing list, COO

TransportBill of lading or air waybill

TimberISPM 15 fumigation certificate

MarkingHeat number on fitting, carton and crate

Destination Requirements We Prepare For

South Africa

Sea freight to Durban or Cape Town, with COO and MTC filed.

UAE

Jebel Ali is the usual port; free zone address goes on the invoice.

Kenya

KEBS PVoC certificate is arranged before the vessel sails for Mombasa.

Canada

Pressure piping fittings need a CRN; we supply the ASME SB366 MTC.

Applications of Alloy 200 Equal Tee and Elbow Fittings

Process plants choose the Nickel 200 Pipe Fittings Supplier in Mangalore.

Marine and Offshore

Fittings on seawater and sea-air exposed lines where nickel resists general attack.

Marine

Caustic Soda Plants

Elbows and tees on sodium hydroxide transfer, evaporator and storage circuits.

Alkali duty

Food and Synthetic Fibre

Joints that must not taint or discolour the product passing through them.

Product purity

Dry Halogen Gas Lines

Dry chlorine, hydrogen chloride and fluorine piping at moderately elevated temperature.

Chemical process

Electronics and Battery

Small-bore fittings on process gas and electrolyte lines in electronic component plants.

Electronics

Heat Exchanger Nozzles

Stub ends, reducers and caps on nickel tube bundles and condenser headers.

Heat transfer

Nickel Alloy 200 Coupling Delivery Timeline

Plan your shutdown around dates this Nickel 200 Pipe Fittings Exporter commits.

✓︎

Ex-Stock Dispatch

Shelf items are cartoned, crated and gated out within 2-5 working days of your PO and any inspection sign-off.

➤︎

Sea Freight

LCL or FCL out of JNPT towards Gulf, East African, European and Canadian ports; the lane is fixed on the offer.

↑︎

Air Freight

Fittings are light per piece, so courier or air cargo via Mumbai airport is practical for shutdown emergencies.

◉︎

Country-Specific ETA

Expect 5-30 days from gate-out to arrival port depending on destination; your quotation states the exact figure.

Nickel 200 Pipe Fittings FAQ

Questions on Pure Nickel 200 Buttweld Fittings answered quickly below.

What sizes do ANSI B16.9 Nickel 200 Pipe Fittings come in?

Buttweld sizes run 1/2 to 48 inch NB per B16.9.

Which standard covers ASTM B366 UNS N02200 Buttweld Fittings?

ASTM B366 grade WPN, with ASME B16.9 dimensions.

Do you stock UNS N02200 Elbow and Alloy 200 Tee?

Yes, long radius elbows and equal tees are kept ready.

What is the maximum service temperature for Ni 200 Reducer or ASTM B366 UNS N02200 Cap?

Up to 315 degrees Celsius, beyond that choose Nickel 201.

Which HS code applies to Nickel 200 Pipe Fittings exports?

HS code 7507.20 applies, Indian tariff uses 75072000 for these.

Is Werkstoff Nr. 2.4066 Stub End or NW 2200 Nipple available?

Yes, both are available, with matching heat-wise test certificates.

Do you supply Nickel Alloy 200 Coupling, Nickel 99.2 Collar or Ni-200 Cross?

Yes, all three ship from stock with 3.1 certificates.
