Nickel 201 Pipe Fittings

Nickel 201 Pipe Fittings Quick Specs Overview


Low carbon nickel elbows, tees and reducers held in Mumbai stock, supplied annealed with a mill finish.

GradeNickel 201 (low carbon nickel)
UNS / Standard basisN02201 / ASTM B366 (ASME SB366)
Size and OD1/2 to 12 in NB; OD 21.3 to 323.9 mm
WallAny producible wall, matched to pipe schedule
TemperAnnealed, mill finish
Alloying elementsNi 99.0% min; C 0.02% max
FormsElbow, tee, reducer, cap, stub end, cross, bend
MTCEN 10204 3.1 / 3.2
TPIYour nominated agency
ConstructionSeamless and welded
LogisticsNhava Sheva (JNPT) and air cargo
Delivery timeDispatch 2-5 days; transit 5-30 days
✓ PMI tested Nickel check on request✓ Heat traceable Marked to MTC✓ Case packed Export ready✓ Bevelled ends Weld ready

5-30Days in transit
1980Founded
2-5Days to dispatch
40+Years in nickel

NACE Certified Alloy 201 Elbow & Tee Supplier in India with Excellent Resistance to Caustic & Alkali Media



Plant designers pick Nickel 201 Pipe Fittings, including the Alloy 201 Tee, for branch connections on chemical lines. Our export cargo travels in strong plywood boxes by sea or air. Metal Tube Industries ranks among the well known stockists of nickel fittings. Nickel 201 Pipe Fittings resist caustic soda and other strong alkalis. Tectubi Raccordi and Benkan fittings sit ready in our godown. Buyers in many countries order from us every single month. Every ASTM B366 UNS N02201 Cap ships with a signed MTC. Italian and Japanese origin lots wait ready to dispatch. Pure Nickel 201 Buttweld Fittings are cleaned and finished before packing. Ni 201 Reducer is shaped exactly as per client drawings. Nickel 201 Pipe Elbow is stocked in long and short radius. Book TPI with us before your shipment leaves port. Send your sizes today for a fast quote.

Table of Contents

Nickel 201 Pipe Fittings Specification Alloy 201 Fittings for Caustic and Alkali Service Types of Nickel Alloy 201 Pipe Fittings Nickel 201 Buttweld Fittings Size Chart Applications of Nickel 201 Reducer Alloy 201 Elbow Manufacturing Process Nickel Alloy UNS N02201 Reducing Tee Welding Guide Nickel 201 Eccentric Reducer Testing and Quality Checks Nickel 201 Stub End Packing and Marking Nickel 201 Buttweld Elbow Chemical Composition Mechanical Properties of ASTM B366 Nickel Alloy 201 Pipe Fittings Nickel 201 Reducing Tee Material Equivalent Nickel 201 vs Nickel 200 Pipe Fittings Comparison ASME SB366 Nickel Alloy 201 Pipe Fitting Dimension Basis Nickel 201 Buttweld Fittings Export Papers and Inspection Delivery Schedule for Nickel 201 Pipe Bend Nickel 201 Pipe Fittings FAQ

Domestic hubsPune, Bengaluru, Chennai, Ahmedabad
Paper trailHeat number carried from mill certificate to case tag
Export lanesTurkey, United States, Saudi Arabia, Canada, South Africa, UAE
Shop servicesBends made to drawing, bevelling and cutting

Nickel 201 Pipe Fittings Specification

Specifications below come from a Nickel 201 Pipe Fittings Supplier in India


Nickel 201 Pipe Fittings Specification

Pure Nickel 201 Buttweld Fittings Physical Properties

  • Density 8.89 g/cm³ (0.321 lb/in³)
  • Melting range 1435 to 1446 °C
  • 2615 to 2635 °F
  • Magnetic and magnetostrictive

UNS N02201 Elbow Chemical Composition

  • Nickel 99.0 percent minimum
  • Carbon 0.02 percent maximum
  • Iron 0.40, manganese 0.35 and silicon 0.35 maximum
  • Copper 0.25 and sulfur 0.01 maximum

Alloy 201 Tee Material Designations

  • UNS N02201
  • Werkstoff Nr. 2.4068
  • NW 2201
  • Alloy 201 or Ni 201

Ni 201 Reducer Dimensional Standards

  • ASME B16.9 buttweld fittings
  • ASME B16.11 threaded and socket weld
  • MSS SP-43 for CR class fittings
  • ASME B16.25 weld end bevel

ASTM B366 UNS N02201 Cap Grade Marks

  • WP class mark: WPNLC
  • CR class mark: CRNLC
  • Fitting classes S, W, WX and WU
  • Class shows construction and NDE extent

Werkstoff Nr. 2.4068 Stub End Fitting Range

  • 45 and 90 degree elbows
  • Equal and reducing tees
  • Concentric and eccentric reducers
  • Caps, stub ends and crosses

NW 2201 Nipple Service Behaviour

  • Chosen above 315 °C (600 °F)
  • Resists caustic alkalis to molten state
  • Severe attack in oxidizing salts
  • Good in neutral and alkaline salts

Ni-201 Cross Added Examination

  • B366 optional supplementary requirements
  • Spectro analysis on request
  • Hydro or NDE on request
  • Heat number marked on each fitting

Nickel Alloy 201 Coupling Weld End Preparation

  • Plain bevelled ends (BE)
  • 37.5 degree bevel standard
  • Square cut or custom bevel on request
  • Bevelling done in our workshop

Alloy 201 Fittings for Caustic and Alkali Service

Alkali duty guide from Nickel 201 Pipe Fittings Supplier in Visakhapatnam


Caustic alkalis

Outstanding resistance, up to and including the molten state.

Neutral and alkaline salts

Good resistance in alkaline and neutral salt solutions.

Oxidizing salts

Severe attack occurs, so these media should be avoided.

Above 315 °C

Low carbon limit avoids graphite formation at heat.

✓ Food purity No product taint✓ Synthetic fibres Clean process lines✓ Caustic evaporators Heat duty

Types of Nickel Alloy 201 Pipe Fittings

Shapes by Nickel 201 Pipe Fittings Supplier in Secunderabad suit most layouts

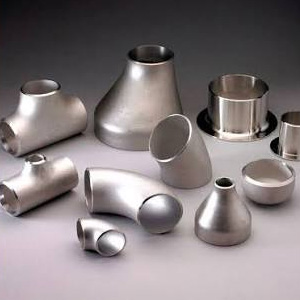

Pure Nickel 201 Buttweld Fittings Buttweld

Pure Nickel 201 Buttweld Fittings

  • StandardASME B16.9
  • EndsButtweld bevel

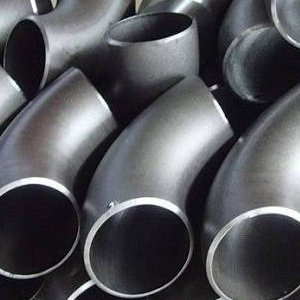

UNS N02201 Elbow Elbow

UNS N02201 Elbow

  • Angle45 or 90 degree
  • RadiusLR 1.5D or SR 1D

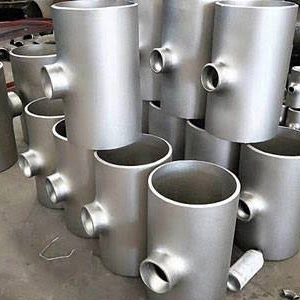

Alloy 201 Tee Tee

Alloy 201 Tee

  • TypeEqual or reducing
  • EndsThree buttweld

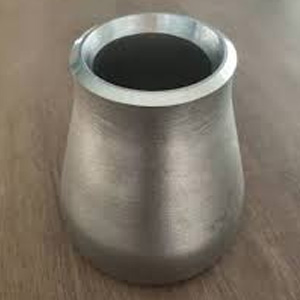

Ni 201 Reducer Reducer

Ni 201 Reducer

  • TypeConcentric
  • UseLine size change

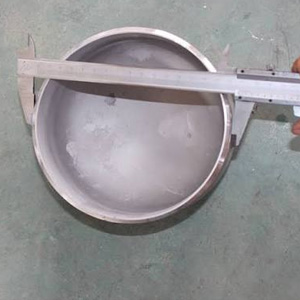

ASTM B366 UNS N02201 Cap Cap

ASTM B366 UNS N02201 Cap

  • UseLine end closure
  • EndsButtweld bevel

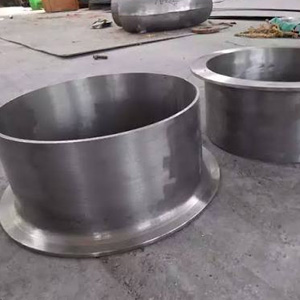

Werkstoff Nr. 2.4068 Stub End Stub End

Werkstoff Nr. 2.4068 Stub End

  • TypeLap joint
  • UseFlange backing joint
NW 2201 Nipple Nipple

NW 2201 Nipple

  • EndsPlain or threaded
  • UseShort pipe connection

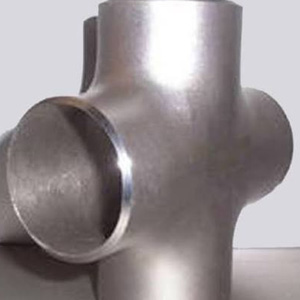

Ni-201 Cross Cross

Ni-201 Cross

  • BranchFour way
  • EndsFour buttweld
Nickel Alloy 201 Coupling Coupling

Nickel Alloy 201 Coupling

  • TypeFull or half
  • EndsSocket weld or threaded

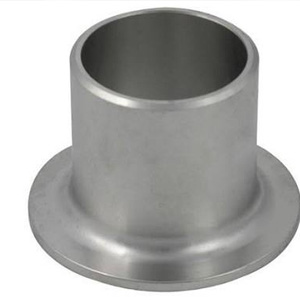

Nickel 201 Collar Collar

Nickel 201 Collar

  • UseFlange backing ring
  • SizeTo your drawing
Nickel Alloy 201 Reducer Reducer

Nickel Alloy 201 Reducer

  • TypeEccentric
  • UsePump suction lines

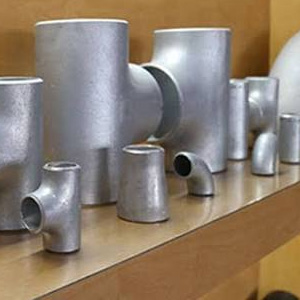

Nickel 201 Welded Pipe Fittings Welded

Nickel 201 Welded Pipe Fittings

  • BuildSeam welded
  • SizesLarge bore range

Nickel 201 Pipe Fittings Manufacturer in India, Supplying Since 1980

Post your fitting list and our desk replies with a clear price.

Request Quote Now

Buy PMI Tested ASTM B366 Nickel Alloy 201 Pipe Fittings in 1/2" NB to 12" NB Sizes for Petrochemical Processing

Nickel 201 Buttweld Fittings Size Chart

Buttweld dimensions in mm as listed by a Nickel 201 Pipe Fittings Manufacturer in India


NPS (in) OD (mm) Centre to End / Overall Length (mm)
90° LR Elbow 90° SR Elbow 45° Elbow Tee (C and M) Cap (E)
1/221.338–162525
3/426.729–192925
133.43825223838
1 1/442.24832254838
1 1/248.35738295738
260.37651356438
2 1/273.09564447638
388.911476518651
4114.31521026410564
5141.31901277912476
6168.32291529514389
8219.1305203127178102
10273.1381254159216127
12323.9457305190254152
Quick rule LR 90° = 1.5 × NPS SR 90° = 1 × NPS 45° = 0.625 × NPS

Applications of Nickel 201 Reducer

Plants in many industries rely on Nickel 201 Buttweld Fittings daily.


Caustic Evaporators

Heat duty piping above 315 °C where Nickel 200 can form graphite.

Above 315 °C

Caustic Soda Lines

Transfer and handling pipework for sodium hydroxide and other alkalis.

Alkali duty

Food Processing

Lines where the metal must not taint or discolour the product.

Product purity

Synthetic Fibres

Process pipework in fibre plants needing clean, corrosion free flow.

Fibre plants

Chemical Processing

Elbows, tees and reducers inside corrosive chemical process units.

Chemical plants

Petrochemical Processing

Alkaline media lines in petrochemical units that call for pure nickel.

Petrochemical

Alloy 201 Elbow Manufacturing Process

Each fitting from a Nickel 201 Seamless Pipe Fittings lot follows these stages


1

Raw Material Selection

Nickel 201 pipe or plate is chosen against the UNS N02201 chemistry limits.

Heat checked
2

Cutting and Blanking

Pipe lengths or plate blanks are cut to the size needed for each fitting shape.

Sized to drawing
3

Hot or Cold Forming

Elbows, tees, reducers and caps are pushed, pressed or bent into their final form.

Shaping
4

Annealing

Heat treatment softens the metal and restores ductility lost during forming.

Annealed temper
5

Cleaning and Finishing

Surface scale is removed, then ends are machined and bevelled for buttwelding.

Mill finish
6

Marking and Packing

Heat number, grade and size are marked, then fittings are case packed for dispatch.

Heat traceable

Nickel Alloy UNS N02201 Reducing Tee Welding Guide

Welding advice for Nickel 201 Pipe Fittings Supplier in Mangalore joints on site


Welding Reference SheetNickel 201 / UNS N02201
ProcessGTAW (TIG)
Filler metalERNi-1
Shielding gasArgon
Bevel angle37.5 deg
PreheatNot required
Heat inputLow, stringer beads
1

Clean the joint area of oil, paint and marking ink.

2

Fit up with an even root gap and aligned bevels.

3

Run the root pass with argon backing.

4

Fill with thin stringer beads and keep interpass heat low.

5

Brush the weld clean and inspect visually.


Nickel 201 Eccentric Reducer Testing and Quality Checks

Checks applied to ASME SB366 Nickel Alloy 201 Pipe Cap and other fittings


1

Chemical Check

Heat chemistry is verified against the UNS N02201 limits on the MTC.

2

PMI Testing

Nickel content is confirmed on the finished fittings on request.

3

Mechanical Test

Tensile, yield and elongation are checked on annealed samples.

4

Dimension Check

Centre to end, OD and bevel are measured against ASME B16.9.

✓ Visual check Every fitting ✓ Hydro test On request ✓ NDE On request ✓ Heat marking Linked to MTC

Nickel 201 Stub End Packing and Marking

Careful packing keeps every Nickel 201 Pipe Elbow safe in transit


Plywood Cases

01

Fittings are placed in strong plywood boxes sized to the lot, with no loose movement inside.

Suits sea and air cargo

End Protection

02

Plastic caps cover the bevelled ends so the weld edges stay free from dents and scratches.

Weld ends arrive ready to use

Moisture Barrier

03

Fittings are wrapped in protective sheet to keep water, dust and handling marks away.

Keeps the surface clean

Fitting Marking

04

Grade, size, schedule and heat number are marked on each fitting for easy identification.

Traceable to the MTC

Case Labelling

05

Each case carries a tag showing the item, quantity, heat number and your order reference.

Easy checking at the port

Document Pack

06

The packing list, invoice and test certificate travel with the consignment for smooth clearance.

Ready for customs
✓ Export ready Case packed ✓ Heat marked Every fitting ✓ Custom packing On request

Nickel 201 Buttweld Elbow Chemical Composition

Every heat tested for purity before dispatch by Nickel 201 Pipe Fittings Supplier in Hyderabad

Ni99.0 minNickel (incl. Co)
Cu0.25 maxCopper
Fe0.40 maxIron
Mn0.35 maxManganese
C0.02 maxCarbon
Si0.35 maxSilicon
S0.01 maxSulfur

Mechanical Properties of ASTM B366 Nickel Alloy 201 Pipe Fittings

Get tensile data from Nickel 201 Pipe Fittings Supplier in Bangalore

Annealed, OD 5 in (127 mm) and under

Tensile, min345 MPa (50 ksi)
Yield 0.2%, min80 MPa (12 ksi)
Elongation 35% minSoft, matte

Annealed, OD over 5 in (127 mm)

Tensile, min345 MPa (50 ksi)
Yield 0.2%, min70 MPa (10 ksi)
Elongation 40% minLarger sizes

Stress-relieved, all sizes

Tensile, min415 MPa (60 ksi)
Yield 0.2%, min205 MPa (30 ksi)
Elongation 15% minHigher strength

Nickel 201 Reducing Tee Material Equivalent

Names matched by Nickel 201 Pipe Fittings Supplier in Pune across standards


UNSN02201
Unified number
W.Nr.2.4068 / 2.4061
German material number
DIN 17740LC-Ni 99
Low carbon nickel
BS 3072-3076NA 12
British designation
ASTM B366WPNLC
Fitting grade mark

Nickel 201 vs Nickel 200 Pipe Fittings Comparison

Compare grades before ordering from Nickel 201 Pipe Fittings Supplier in Mumbai


Nickel 201

  • Carbon 0.02% max (UNS N02201)
  • Chosen for service above 315 °C (600 °F)
  • Lower hardness, good for cold forming
  • Annealed tensile 345 MPa min (ASTM B161 pipe)
VS

Nickel 200

  • Carbon 0.15% max (UNS N02200)
  • Kept below 315 °C to avoid graphite
  • Harder in the annealed condition
  • Annealed tensile 380 MPa min (ASTM B161 pipe)

ASME SB366 Nickel Alloy 201 Pipe Fitting Dimension Basis

Confirm radius with Nickel 201 Pipe Fittings Stockist in India before drawings


Elbow centre to end LR 90 deg = 1.5 × NPS SR 90 deg = 1 × NPS 6 in LR: 229 mm 6 in SR: 152 mm

Size coverage

B16.9 buttweld fittings run NPS 1/2 to 48; B16.11 threaded and socket weld run 1/8 to 4.

Wall and rating

B16.9 covers any producible wall; the fitting takes the rating of the matching pipe.

Class WP

Made to ASME B16.9 or B16.11 and marked WPNLC for Nickel 201.

Class CR

Made to MSS SP-43 for low pressure corrosion resistant duty, marked CRNLC.


Nickel 201 Buttweld Fittings Export Papers and Inspection

Papers from Nickel 201 Pipe Fittings Stockist in Mumbai are listed here


1

MTC 3.1

EN 10204 3.1 certificate with heat chemistry and mechanical results.

2

MTC 3.2

Countersigned by your appointed inspector or agency on request.

3

PMI report

Nickel content check on the fittings, issued when you ask for it.

4

Third party inspection

Your nominated agency can witness dimensions and visual checks.

5

Shipping set

Commercial invoice and packing list, with heat numbers tagged on cases.


Reliable Nickel 201 Eccentric Reducer Exporter for Durban Port, South Africa

Share your destination terminal with order volume to receive landed pricing quickly.

Request Export Quote

Delivery Schedule for Nickel 201 Pipe Bend

Transit plans from Nickel 201 Pipe Fittings Exporter stay simple and clear


Ex-Stock Dispatch

Ready fittings are boxed and handed to the carrier within 2-5 days of confirmed order.

Sea Freight

Case packed lots sail from Nhava Sheva towards Jebel Ali, Durban, Mombasa or Vancouver.

Air Freight

Small urgent consignments of elbows and tees can fly out of Mumbai on request.

Country-Specific ETA

Expect 5-30 days in transit by lane, with the window stated in your written offer.


Trusted UNS N02201 Buttweld Fittings Supplier in Chennai Meeting ASTM B366 and ASME B16.9

Ask our sales desk for mill paperwork covering every heat shipped.

Get Supplier Quote

Nickel 201 Pipe Fittings FAQ

Answers to common questions on ASTM B366 Nickel Alloy 201 Pipe Fittings


Where are Nickel 201 Pipe Fittings commonly used?

Caustic plants, food processing, chemical handling and high temperature service.

Which standard governs Nickel 201 Buttweld Fittings?

ASTM B366 covers factory made wrought nickel buttweld fittings.

What size range do ASME B16.9 Nickel 201 Buttweld Pipe Fittings cover?

We supply buttweld fittings from half inch up to twelve inch NB; ASME B16.9 itself covers half inch up to forty eight inch.

Are Nickel 201 90 deg Elbow and 45 deg. Elbow both available?

Yes, both angles come in long radius and short radius.

How does a Nickel 201 Eccentric Reducer differ from a concentric one?

Concentric reducers are symmetrical; eccentric ones keep one side flat.

Are Nickel 201 Seamless Pipe Fittings supplied along with welded types?

Yes, both seamless and welded types ship in standard sizes.

Which other fittings come in Nickel 201 besides elbows and reducers?

Stub ends, caps, tees, crosses and bends are all stocked.


★ Pick steady quality and prompt delivery from a Nickel Alloy Fittings Stockist ★
